三通閥球 > B127-EF
| 品名： | B127-EF |
|---|---|
| 材質： | A351 CF8(18Cr-8Ni) |
| 鑄造： | 砂模鑄造 |
| 熱處理： | 固溶化 |
| 精度： | 真圓度≦0.03mm |
| 尺寸： | 2" |
| Service Application： | Water、Oil、Gas、Thermal Fluid、Chemicals、and others |
| Certifications： | BVQI NSF-ISR ISO 9001:2008 |

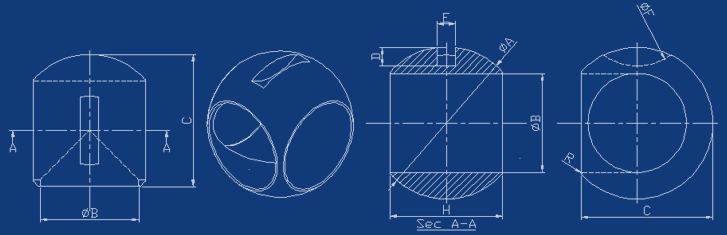

| φA | φB | C | D | E | φF | H | R | |
|---|---|---|---|---|---|---|---|---|
| 1/2" | 25.5 | 10 | 24.15 | 3.15 | 4 | 22.5 | 22.8 | 0.6 |
| 1/2" | 35.5 | 15 | 33.45 | 5.35 | 4 | 22.5 | 31.4 | 0.6 |
| 3/4" | 43.6 | 19 | 41.05 | 5.5 | 4 | 22.5 | 38.5 | 0.6 |
| 1" | 52 | 25 | 48.2 | 6.9 | 6 | 32.5 | 44.4 | 0.8 |
| 1" | 61 | 30 | 56.45 | 6.9 | 6 | 32.5 | 51.9 | 0.8 |
| 1 1/2" | 74 | 38 | 67.95 | 9 | 8 | 63 | 61.9 | 1 |
| 2" | 94 | 51 | 85.6 | 9.7 | 8 | 63 | 77.2 | 1 |
| 2 1/2" | 100 | 65 | 87.01 | 12.36 | 12 | 79.2 | 74.01 | 0.8 |
| 2 1/2" | 114.5 | 64 | 103.8 | 13.45 | 12 | 125 | 93.1 | 1 |
| 2 1/2" | 119.5 | 69 | 107.55 | 13.25 | 12 | 125 | 95.6 | 1 |
| 3" | 119.5 | 76 | 104.65 | 13.25 | 12 | 125 | 89.8 | 1 |
| 3" | 150 | 87 | 134.9 | 16.5 | 16 | 160 | 119.8 | 1.2 |
| 4" | 150 | 98 | 130.3 | 16.5 | 16 | 160 | 110.6 | 1.2 |
| 4" | 178 | 108 | 158.5 | 16.5 | 16 | 160 | 139 | 1.2 |
| 4" | 178 | 115 | 155.5 | 16.5 | 16 | 160 | 133.1 | 1.2 |
| 5" | 230 | 136 | 206.5 | 25 | 30 | 160 | 183 | 1.2 |
| 6" | 230 | 150 | 200.7 | 25 | 30 | 160 | 171.4 | 1.2 |
*產品規格尺寸樣式可依客戶需求訂製
