Four Way Ball of Valve > B170-XP
| Product name： | B170-XP |
|---|---|
| Material： | A351 CF8M(18Cr-8Ni-Mo) |
| Casting： | Sand-mold casting |
| Heat treatment： | Solution annealing |
| Precision： | Roundness≦0.03mm |
| Dimensions： | 1/2"~4" |
| Service Application： | Water、Oil、Gas、Thermal Fluid、Chemicals、and others |
| Certifications： | BVQI NSF-ISR ISO 9001:2008 |

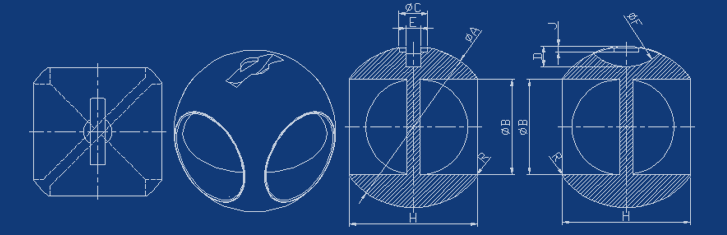

| φA | φB | φC | D | E | φF | H | J | R | |
|---|---|---|---|---|---|---|---|---|---|
| 1/2" | 30 | 11.6 | 10.2 | 6 | 5 | 26 | 26.9 | 2.5 | 0.5 |
| 1/2" | 30 | 12.7 | 10.2 | 6 | 5 | 26 | 26.3 | 2.5 | 0.5 |
| 1/2" | 30 | 15 | 10.2 | 6 | 5 | 26 | 24.8 | 2.5 | 0.5 |
| 3/4" | 42.5 | 20 | 14.2 | 8.5 | 5 | 26 | 36.3 | 3.5 | 0.7 |
| 1" | 54 | 25 | 18.6 | 10.5 | 8 | 50 | 46.6 | 4.2 | 0.7 |
| 1 1/4" | 63 | 32 | 18.6 | 10.8 | 8 | 50 | 53 | 4.4 | 0.7 |
| 1 1/2" | 77.8 | 38 | 26.2 | 16 | 9.5 | 80 | 66 | 5.5 | 0.8 |
| 2" | 90 | 50 | 26.2 | 15.5 | 9.5 | 80 | 73 | 5.1 | 0.8 |
| 2 1/2" | 110 | 65 | 26.2 | 18 | 12 | 80 | 86.7 | 5.5 | 1 |
| 3" | 125 | 76 | 30.2 | 16.2 | 12 | 100 | 97 | 6 | 1 |
| 4" | 170 | 100 | 30.2 | 21.5 | 16 | 100 | 134.5 | 6 | 1.2 |
**The product specification size style may depend on customer demand ordering
